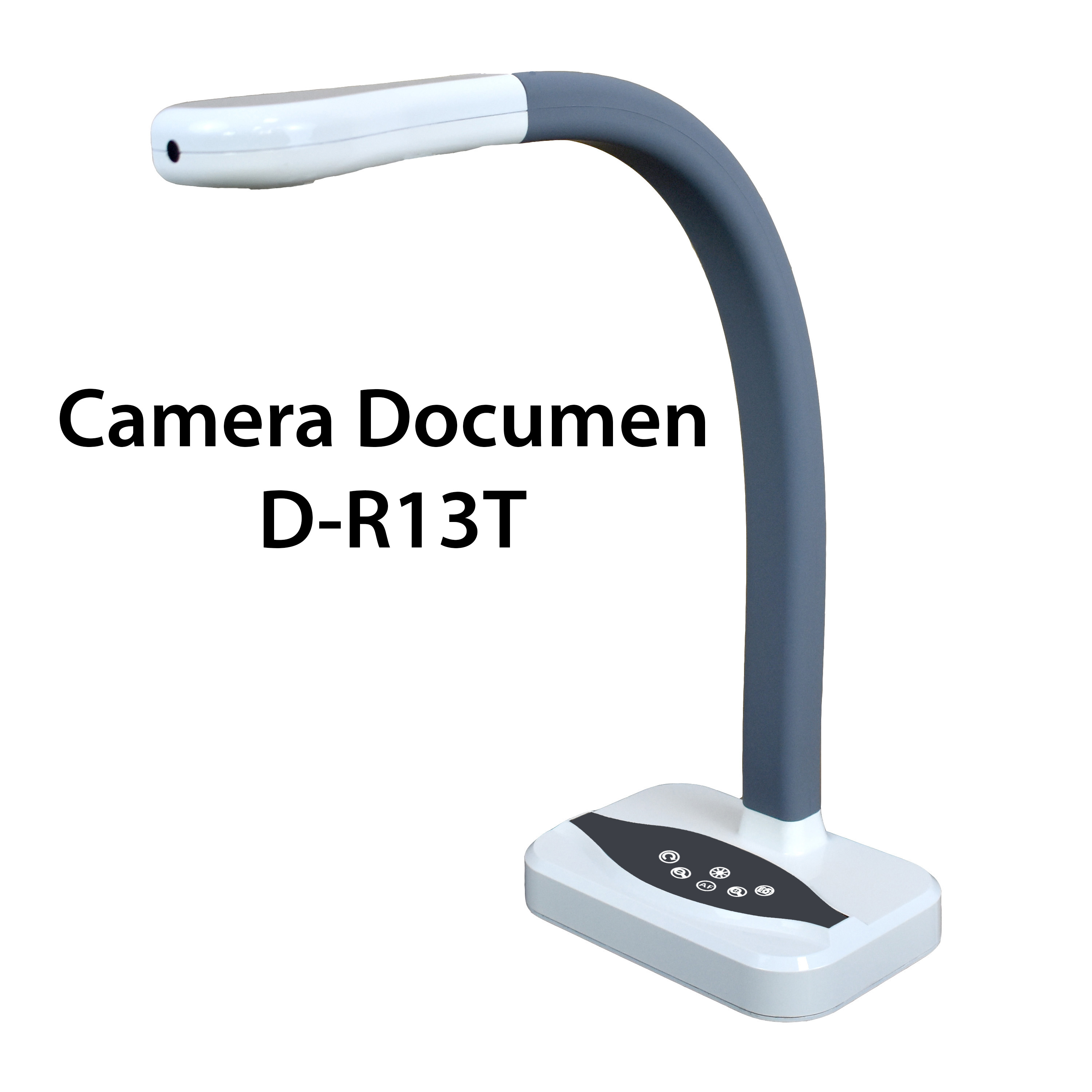

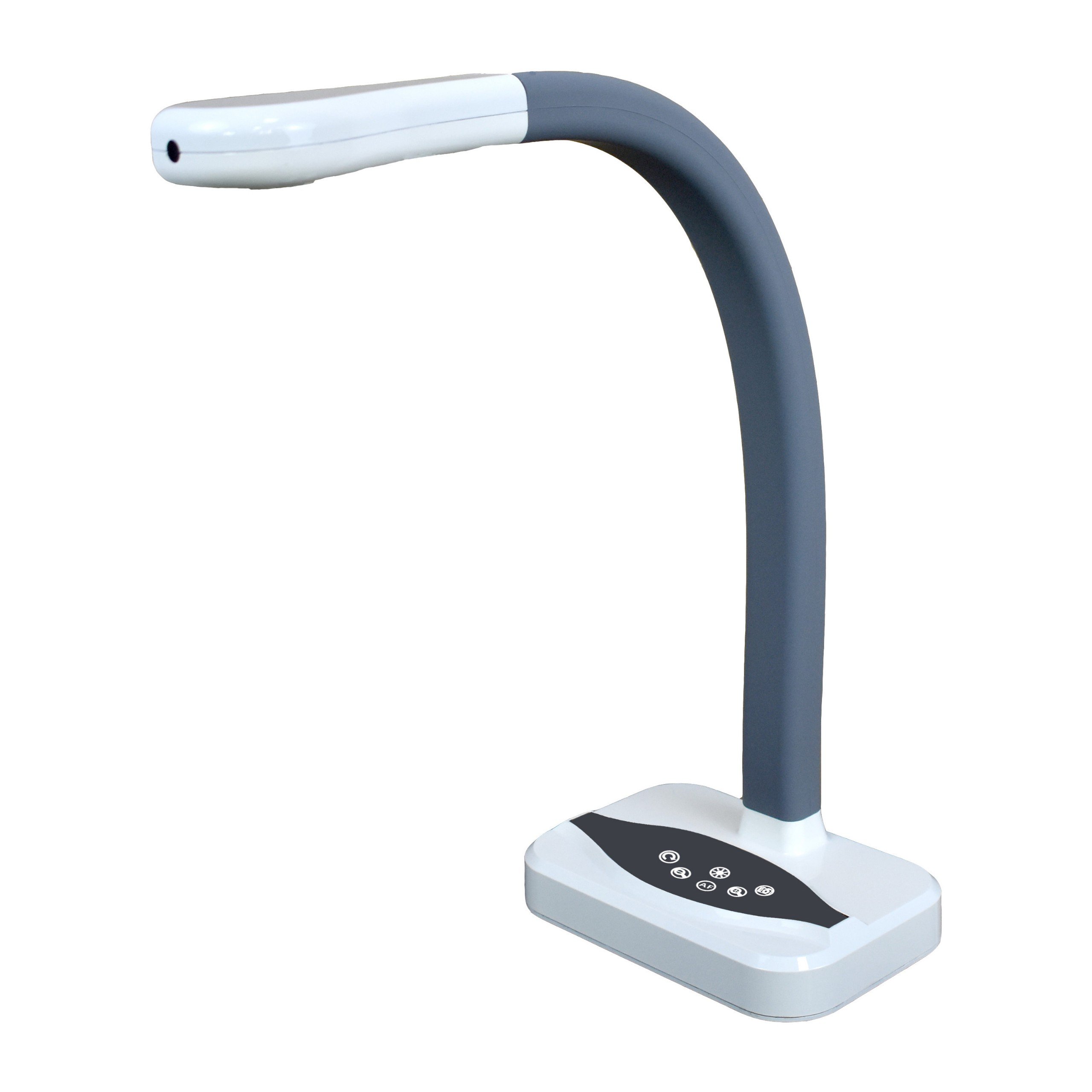

Document Camera D-R13T

Short description:

The whole machine is designed with ABS plastic environmentally friendly materials, the appearance of the sun-grained frosted feel on the outside, the universal silicone hose support designed, shooting at any angle.
The body is equipped with quick and multi-functional capacitive touch buttons, built-in high-brightness LED fill light, and a standard Type-C connection cable.
The first line ensures signal transmissionm and booth power supply neddds, the mahcine comes with 2 sets of independent USB expansion ports, which are convenient for connecting U disk storage and mouse control.
The DC power supply interface is in thsupply can ensure stable power supply

Product Detail
SPECIFICATIONS

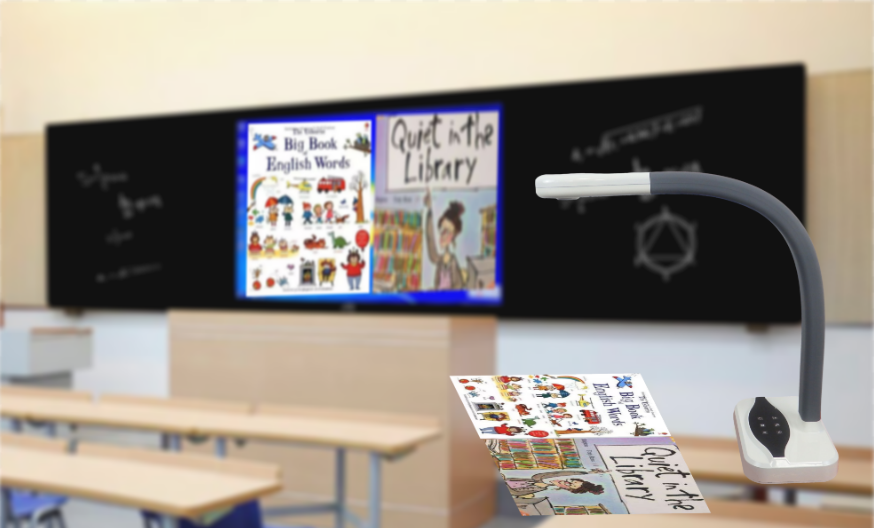

PRODUCT APPLICATION



  • Brand: Meekbase

  • Model: D-R13T

  • Main Sensor: Sony 1/3 inch

  • Main Photosensirive Pixels: 13M COMS

  • Main Shots: F2.2 / viewing angle 70 dergee

  • Output Resolution:

    • MJPg: 800 * 600; 1024 * 768; 1280 * 1024; 1280 * 720; 1920 * 1080; 2048 * 1536; 2592 * 1944; 3264 * 2448; 4208 * 3120.

    • YUY2: 800 * 600; 1024 * 768; 1280 * 1024; 1280 * 720; 1920 * 1080; 2048 * 1536; 2592 * 1944; 3264 * 2448.

  • Ambient Illuminance Range: 10 Lux ~ 2000 Lux (best working environment lighting range: 80 Lux ~ 300 Lux).

  • Microphone: high-sensitivity microphone.

  • Output Resolution: 4208 * 3120 (highest).

  • Sharpness: More then 1200 lines on the center and more than 900 lines in the periphery (1 : 1 size dynamic, static observation).

  • Video Output Format: YUY2 / MJPG

  • Focus Mode: Autofocus

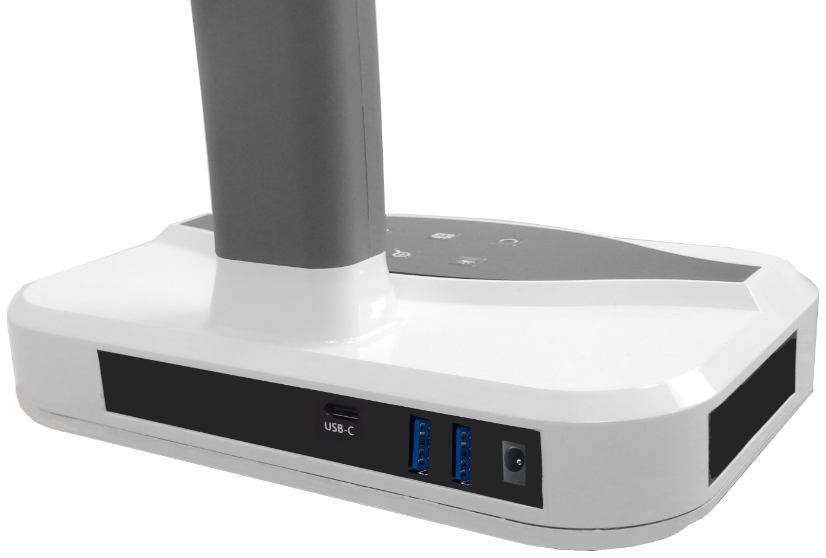

  • Interface: USB-C port; USB- Hub * 2; DC

  • Key Control: Light / Focus / Zoom in / Zoom out / Take a picture / Rotate

  • Transmission Rate:

    • 15 frames/sec in 4208 * 3120 mode

    • 30 frames/sec in 1080p mode

    • Signal-to-moise Ratio: Better than 48dB (30 frames/sec 220 Lux)

    • Dynamic Range: Better than 68 dB

    • Imageing Distance: 15cm ~ infinity

    • Compression Mode: DSP built-in image compression

    • White Balance: Automatic adjustment

    • Operating Ambient Temperature: 0 dergee C ~ 45 dergee C

    • Operating Environment Humidity: < 85%

    • Storage Environment Temperature: -20 dergee C ~ 60 dergee C

    • Storage Environment Humidity: < 85%

    • Standby Current: < 25mA

    • Operating Dynamic Current: < 300mA

    • Photography Format: A2 Area (Max)

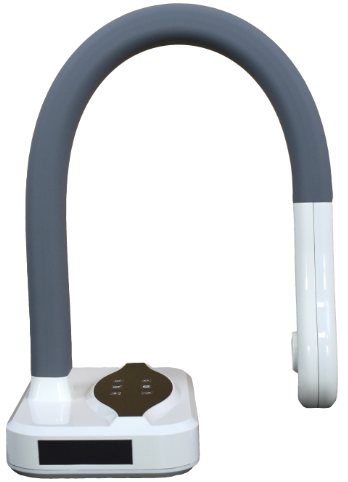

    • Overall Machine Size: 20.3 * 24 * 35cm (L * W * H) collapsed state.
