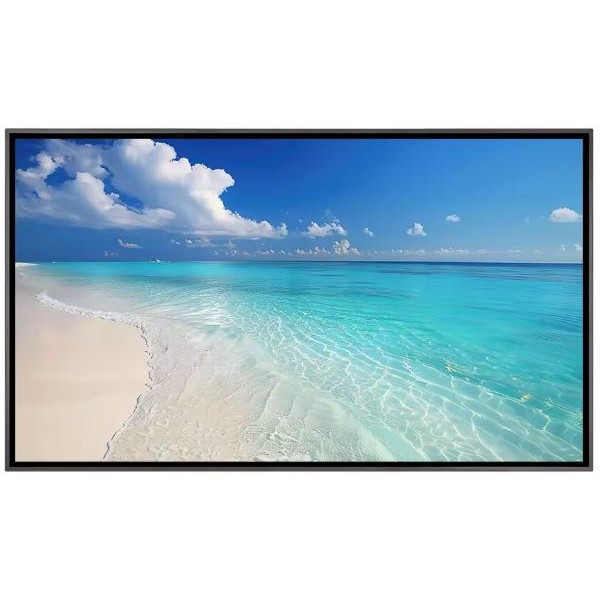

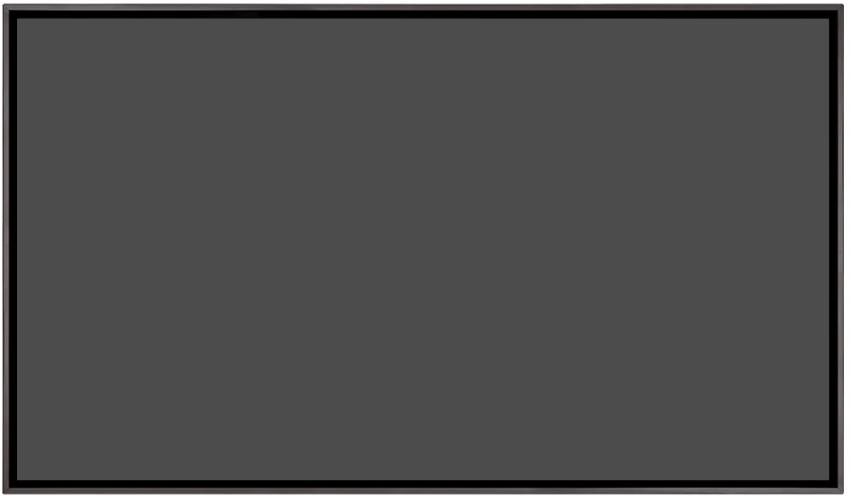

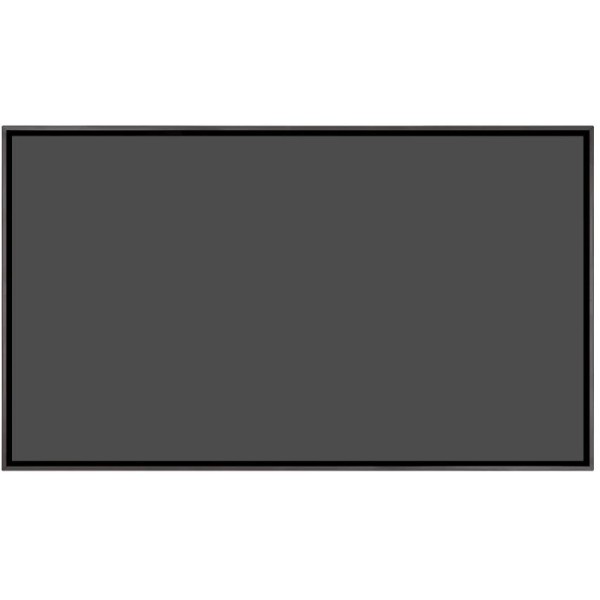

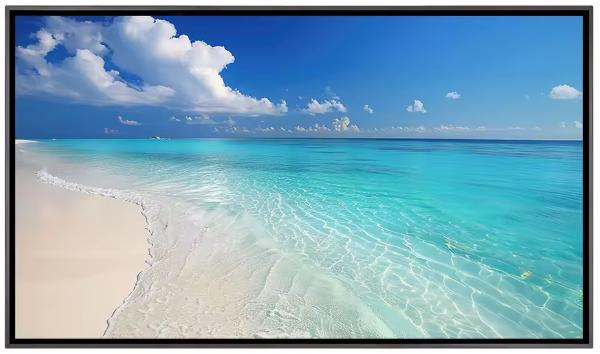

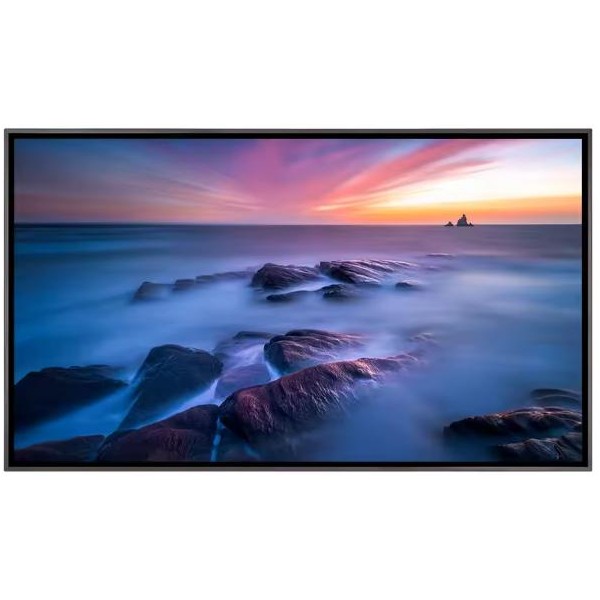

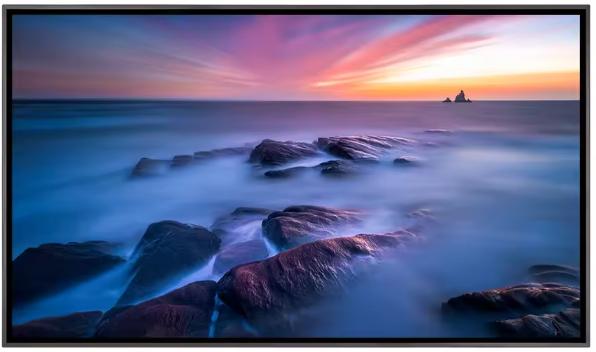

LED Display 4K
Meekbase 4K LED Display one new multimedia device integrated Imaging, Audio, Video, Animation and PC technology in one.
Upgraded based on Interactive smart board, it simplifies connection and installation works.
It’s widely used in education, business and corporations for efficient presentation.
|
Items |
Screen size |
65”/ZCB65E3001 |
75”/ZCB75E3001 |
85"/ZCB85E3001 |
|
Screen type |
LED/DLED |
LED/DLED |
LED/DLED |
|
|
Weight |
± 28.5kg |
± 32kg |
± 45kg |
|
|
Dimension (mm) |
1461.4*840.6*75.6 |
1692.8*976.7*76.9 |
1916.7*1101.7*85.1 |
|
|
Display |
Resolution |
4K UHD – (3840×2160) |
||
|
Frequency |
60Hz |
|||
|
Response Time |
4ms -8ms |
|||
|
Aspect Ratio/ Disp |
16:9 / Horizontal |
|||
|
Display Color |
1.07B (10bit) |
|||
|
Brightness |
450cd/m2 |
|||
|
Contrast |
5000:1 |
|||
|
Color Gamut |
72% NTSC |
|||
|
Viewing angle |
178° (H/V) |
|||
|
Display protection |
Anti-glare tempered glass 4mm, 7H hardness |
|||
|
Backlight life time |
65.000 hours (min) |
|||
|
Electrical Performance |
Max Power |
≤140W |
≤250W |
≤400W |
|
Standby power |
0.5W |
|||
|
Voltage |
100-240V(AC) - 50/60Hz |
|||
|
Operating System |
Processor |
A55*4 (1.9Ghz) |
||
|
Operation system |
Android 9.0/ 13.0 Upgrade |
|||
|
Storage |
Ram: 1.5G/2G (optional); Flash: 8G/16G (optional) |
|||
|
Support system |
Android; Windows; Mac OS… |
|||
|
I/O Interface |
Ports |
HDMI in*3; USB*2; Coax (SPDIF)*1; Audio/Earphone out (jack3.5mm)*1; AV(L,R)*1; LAN(RJ45)*1 |
||
|
OSD |
Languages |
English, French, Chinese, Vietnamese, etc… |
||
|
Audio |
Speaker |
15W*2 (20W optional)/ 8Ω Includes treble and bass) |
||
|
Environment |
Operation Temperature |
0°C ~ 40°C |
||
|
Storage Temperature |
-20°C ~ 60°C |
|||
|
Operation Humidity |
10-90%RH |
|||
|
Support frame |
Steel frame, plastic back cover |
|||
|
Accessories |
Power cable*1 pcs; Remote Controller*1 pcs; Instruction manual*1 pcs; Warranty card*1 pcs; Wall brackets *1 set |
|||
The specifications will be subject to change without prior notice.
