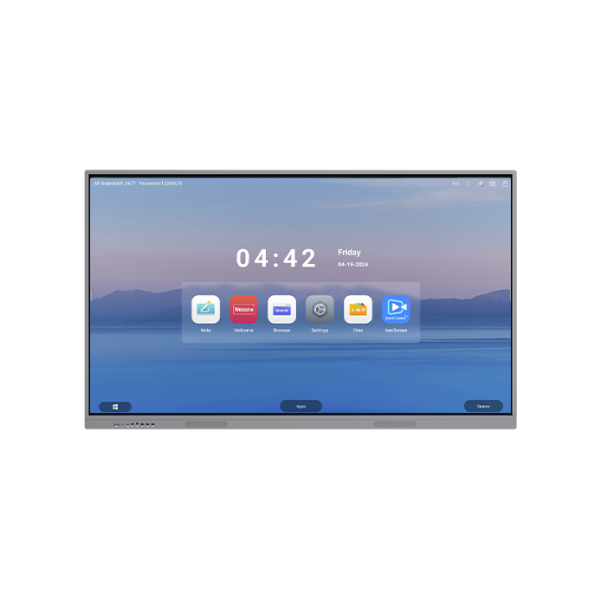

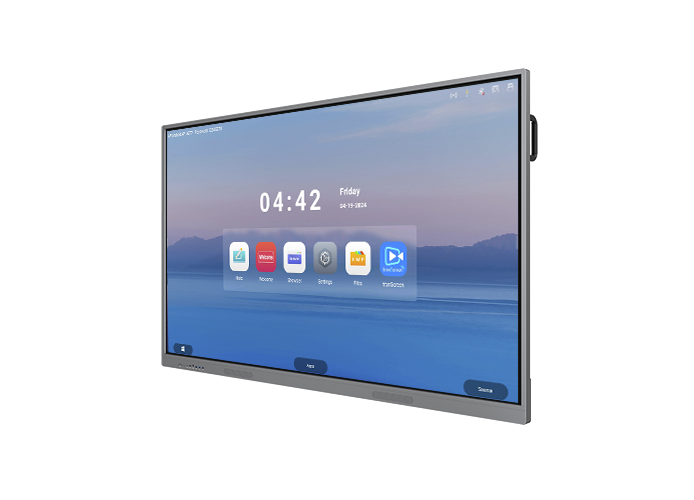

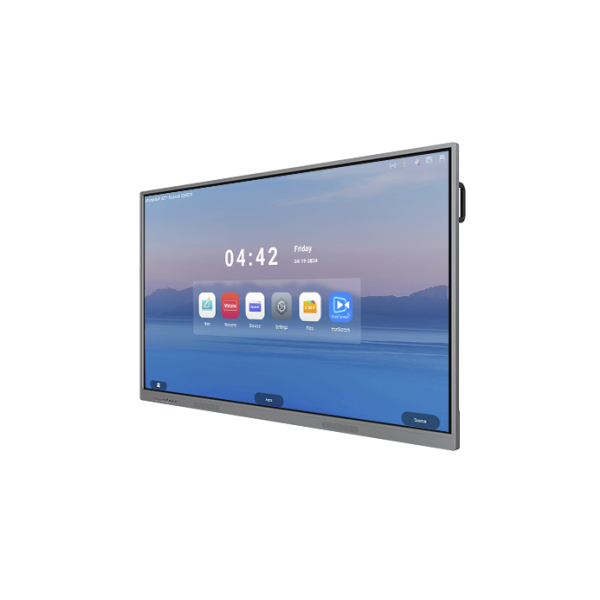

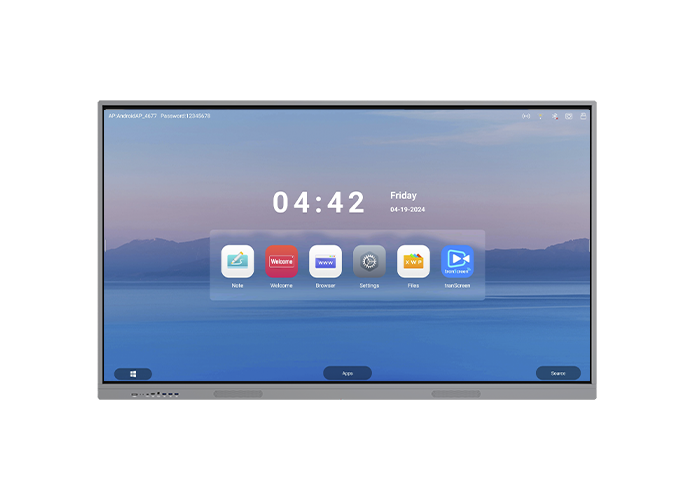

Interactive Flat Panel Display H Series
Short description:
Product code:RK3588
· 4K UHD display, support for all-channel 4K UI display
· Supports wifi 6 (2.4Ghz + 5Ghz) and bluetooth 5.2
· Incorporates IR touch technology
· 20-point simultaneous multi-touch capability
· Two styluses for simultaneous annotation with two colors
· Zero bonding technology, low height. Low parallax writing and wider
· Android 13.0
| Interactive Flat Panel H Series | ||||||
| Display | Screen Size | 65” | 75” | 86” | 98" | 110" |
| Active Size | 1429.7*804.7mm | 1648.7*926.9mm | 1894.04*1065.9 mm | 2157.7*1224.2mm | 2437.4*1371mm | |
| Back Light Unit | DLED | |||||
| Resolution | 4K (UHD) 3840 × 2160 | |||||
| Display Color | 1.07B (10bit) | |||||
| Color Gamut | 72% NTSC | |||||
| Refresh Rate | 60Hz | |||||
| Brightness | 450-500cd/m² | |||||
| Contrast Ratio | 5000:1 (according to panel brand) | |||||
| Viewing Angle | 178°(H/V) | |||||
| Display Protection | Surface with AG anti-glare streatment, reduce blue light, surface hardness 7H | |||||
| Backlight Life | 50,000 hours | |||||
| Operating System (Dual OS available) | Android System | Android: 13.0 (upgrade) | ||||
|
CPU: Quad core A76*4 + A55*4, @ 2.4Ghz; GPU: Mali – G610; NPU: 6 tops
|
||||||
| Ram: 16G; Flash: 256G | ||||||
| Wifi6: 2.4G+5G; wifi hotspot 2.4G+5G | ||||||
| Bluetooth: 5.2 | ||||||
| OPS PC (Optional) | CPU: Intel Core-i5; (i7/ i9 Optional) | |||||
|
Memory: Ram DDR4- 8G; (16G - Optional) Hard Disk: 256 SSD; (512G - Optional)
|
||||||
| Intel integrated HD graphics | ||||||
| WIFI: 802.11b/g/n | ||||||
| Windows: Pre-install Win 11 English | ||||||
| Touch Screen | Touch Technology |
IR touch with Zero bonding Gen2 20 points Android – 40 points Windows
|
||||
| Touch Accuracy | ±1mm (90% touch area), 10% edge area accuracy ±3mm | |||||
| Response Time | ≤ 6ms | |||||
| Touch Resulotion | 32768 x 32768 | |||||
| Operation System | Windows7/10/11, Android, Mac OS, Linux, Chrome | |||||
| Audio | Speakers | 15W *2/ 8Ω + 20W Sub | ||||
| Camera | Optional | 48M Pixel; Effective Focal Length: 5.25mm; Field of View: 120 °, Wide-Angle Distortion ≤1.5 % | ||||
| Microphone |
Microphone array 8; Linear equidistant array microphone; SNR: 74db; Pickup distance: 0-12 meters Function: Echo cancellation, environmental noise suppression, adaptive vocal enhancement |
|||||
| Ports Interface | Rear Ports | HDMI in*3; Type-C in*1; Type-C out*1; DP*1; VGA*1; VGA Audio*1; USB-A3.0*2; USB-A2.0*1; USB (touch)3.0*2; HDMI out*1; Coax/Optical out*1; Line out*1; RJ45 in*1; RJ45 out*1; RS232*1 | ||||
| Front Ports | HDMI in*1; Type-C*1; USB-A3.0*2; USB-Touch*1 | |||||
| Working Environment | Temperature | 0°C ~ 40°C | ||||
| Humidity | 10% ~ 90%RH | |||||
| Power Supply | Voltage | AC 100V-240V, 50Hz/60Hz | ||||
| Max Power | <250W | <350W | <450W | <550W | <720W | |
| Standby Power | 0.5W | |||||
| Frame color | Silver | |||||
| Dimension | 1483.2*904.7*87.1mm | 1705.4*1028.4*87.3mm | 1951.6*1166.7*87.3mm | 2215*1333.1*93.4mm | 2501.2*1482.1*93.9mm | |
| N.W / G.W | ~ 35kg/ 45kg | ~ 48kg/ 61kg | ~ 63kg/ 80kg | ~88kg/ 113kg | ~115kg/ 143kg | |
| Accessories | Power cable*1 pcs; HDMI cable*1 pcs; Touch cable*1 pcs; Touch Pen*2 pcs; QC card*1 pcs; Warranty card*1 pcs; Wall brackets*1 set; Remote Controller*1 pcs | |||||
