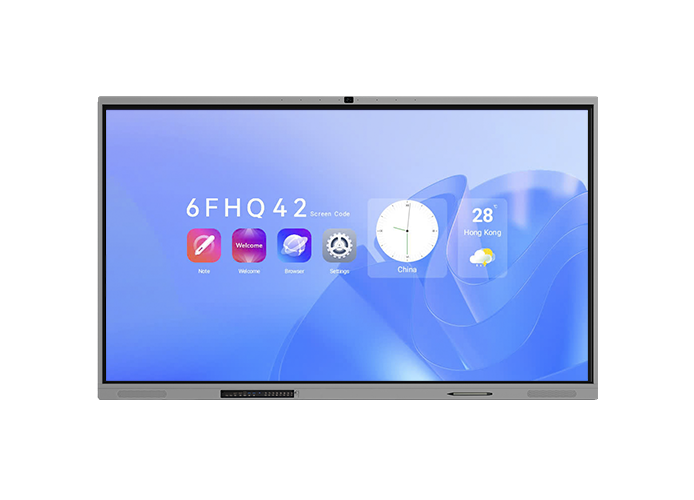

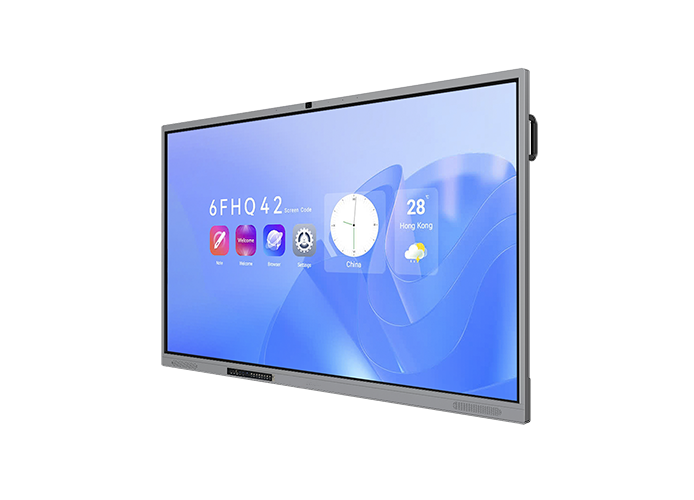

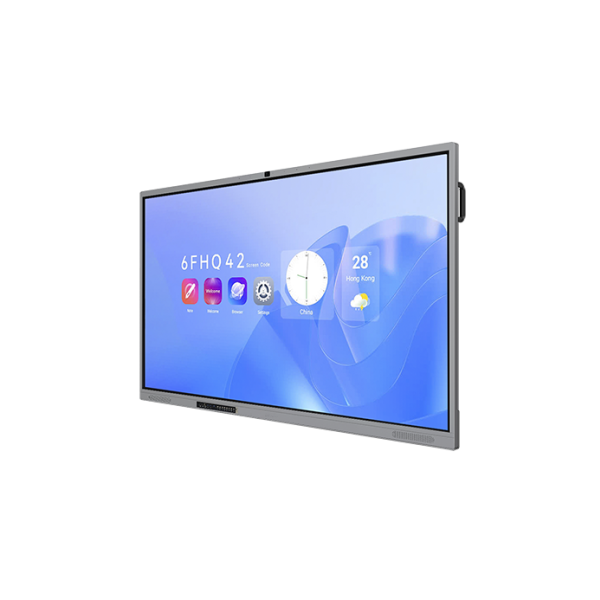

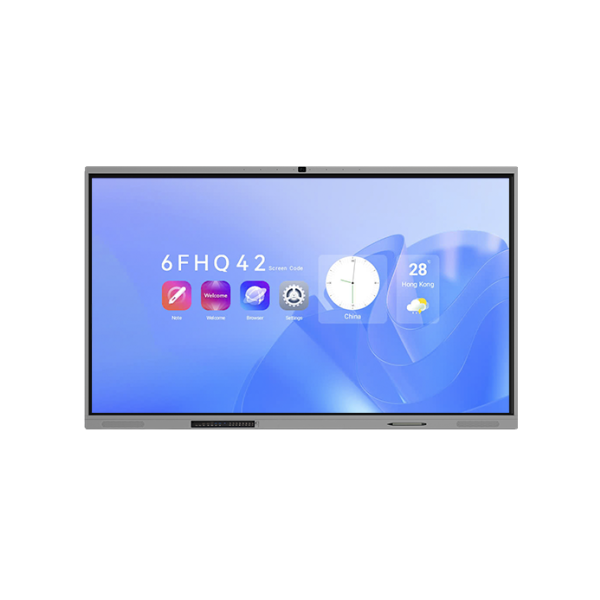

Interactive Flat Panel Display N Series
Short description:
Product code:RK3576
· 4K UHD display, support for all-channel 4K UI display
· Supports wifi 6 (2.4Ghz + 5Ghz) and bluetooth 5.2
· Incorporates IR touch technology
· 20-point simultaneous multi-touch capability
· Front interface HDMI & Type-C*2
· Zero bonding technology, low height. Low parallax writing and wider
· Android 13.0 ver: Os 2.0
. New desgin & Sliding lock
. Built-in 48MP AI UHD camera 120° FOV and dynamic auto-framing, 8 array microphone
| Interactive Flat Panel N Series | ||||
| Display | Screen Size | 65” | 75” | 86” |
| Active Size | 1429.7*804.7mm | 1648.7*926.9mm | 1894.04*1065.9 mm | |
| Back Light Unit | DLED | |||
| Resolution | 4K (UHD) 3840 × 2160 | |||
| Display Color | 1.07B (10bit) | |||
| Color Gamut (typ) | 72% NTSC | |||
| Refresh Rate | 60Hz | |||
| Brightness | 500cd/m² | |||
| Contrast Ratio | 5000:1 (according to panel brand) | |||
| Viewing Angle | 178°(H/V) | |||
| Display Protection | Surface with AG anti-glare streatment, reduce blue light, surface hardness 7H | |||
| Backlight Life | 50,000 hours | |||
| Operating System (Dual OS available) | Android System | Android: 14.0 | ||
|
CPU: Quad core A72*4+A53*4, @ 2.4Ghz + 2.0Ghz; GPU: Mali – G52MC3
|
||||
| Ram: 8G; Flash: 128G | ||||
| Wifi 6: 2.4G+5G; wifi hotspot 2.4G+5G | ||||
| Bluetooth: 5.2 | ||||
| OPS PC (Optional) | CPU: Intel Core-i5; (i7/ i9 Optional) | |||
|
Memory: Ram DDR4- 8G; (16G - Optional) Hard Disk: 256 SSD; (512G - Optional)
|
||||
| Intel integrated HD graphics | ||||
| WIFI: 802.11b/g/n | ||||
| Windows: Pre-install Win 11 English | ||||
| Touch Screen | Touch Technology |
IR touch with Zero bonding Gen2 20 points Android – 40 points Windows
|
||
| Touch Accuracy | ±1mm (90% touch area), 10% edge area accuracy ±3mm | |||
| Response Time | ≤ 6ms | |||
| Touch Resulotion | 32768 x 32768 | |||
| Operation System | Windows7/10/11, Android, Mac OS, Linux, Chrome | |||
| Audio | Speakers | 15W *2/ 8Ω + 20W Sub (optional) | ||
| Camera | 48M Pixel; Effective Focal Length: 5.25mm; Field of View: 120 °, Wide-Angle Distortion ≤1.5 % | |||
| Microphone |
Microphone array 8; Linear equidistant array microphone; SNR: 74db; Pickup distance: 0-12 meters Function: Echo cancellation, environmental noise suppression, adaptive vocal enhancement |
|||
| Ports Interface | Rear Ports | HDMI in*2; Type-C in*1; Type-C out*1; DP*1; USB-A3.0*2; USB-A2.0*1; USB (touch)*2; HDMI out*1; Coax/Optical out*1; Line out*1; RJ45 in*1; RJ45 out*1; RS232*1 |
||
| Front Ports | HDMI in*2; Type-C*2; USB-A3.0*2; USB-Touch*1 | |||
| Working Environment | Temperature | 0°C ~ 40°C | ||
| Humidity | 10% ~ 90%RH | |||
| Power Supply | Voltage | AC 100V-240V, 50Hz/60Hz | ||
| Max Power | <250W | <350W | <450W | |
| Standby Power | 0.5W | |||
| Frame color | Silver | |||
| Dimension | 1483.2*904.7*87.1mm | 1705.4*1028.4*87.3mm | 1951.6*1166.7*87.3mm | |
| N.W / G.W | ~ 35kg/ 45kg | ~ 48kg/ 61kg | ~ 63kg/ 80kg | |
| Accessories | Power cable*1 pcs; HDMI cable*1 pcs; Touch cable*1 pcs; Touch Pen*2 pcs; QC card*1 pcs; Warranty card*1 pcs; Wall brackets*1 set; Remote Controller*1 pcs | |||
